Installation

Prerequisites

Git

Git is a free and open source distributed version control system that allows versioning your code. Ensure that git executable is installed: open a terminal (e.g. Windows PowerShell) and type git --version.

If Git is not installed, you may install it following the instructions here.

conda

conda is a package and environment manager. It allows to create environments, install Python^TM packages and their dependencies within these environments. miniconda is a free minimal installer for conda.

Ensure that conda executable is installed by typing in a terminal conda --version. If conda is not installed (command not found) you can install it by following these instructions (install miniconda).

Once miniconda installed, you will be able to see an Anaconda Powershell Prompt (Miniconda3) added to your system. This terminal will allow you to run conda commands. You may also execute conda with other terminals. In order to do so, type in Anaconda Powershell Prompt (Miniconda3) conda init (refer to this doc for details).

GitHub

You must also ensure that you have a valid GitHub. You can create your account by the instructions here.

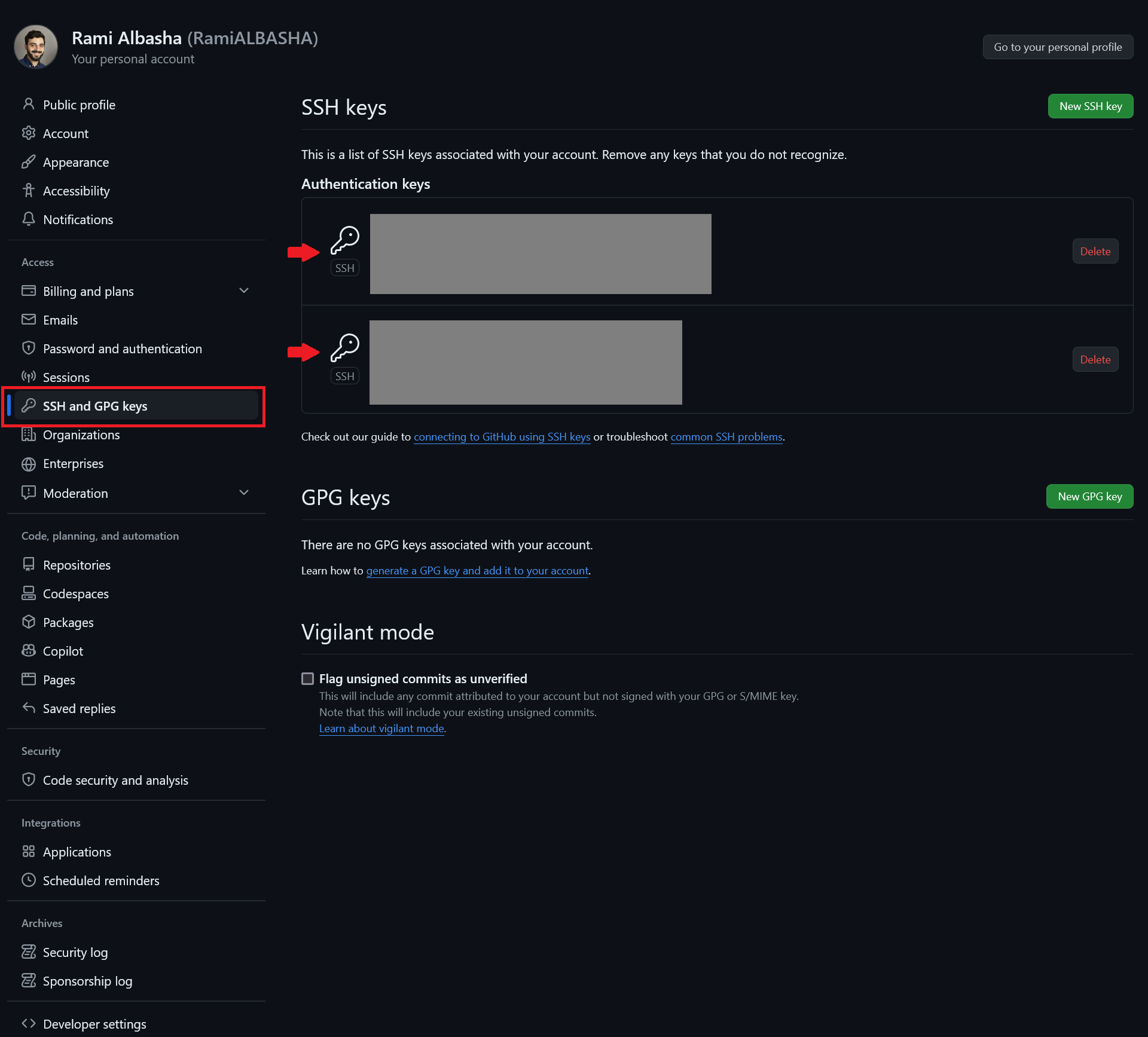

It is recommended to clone projects from GitHub using the Secure Shell Protocol (SSH) protocol. Ensure that your GitHub profile has a public SSH key linked to a private key locally. Check out your existing SSH keys by going to your GitHub profile settings:

For more details on how to check if you have existing SSH keys, refer to the instructions here.

If you want to create an new pair of SSH-keys, please follow the instructions here.

PyCharm

PyCharm is an integrated development environment (IDE) used for programming in Python^TM. It provides powerful facilities for code analysis, debugging, testing and versioning, among others.

To install PyCharm, you will have to download the executable from here (Professional or Community edition) and then execute it in your PC.

Holos CLI

Before using PyHolos, the user needs to install Holos CLI. This can be performed by hitting this link.

Once the installation terminated, the user needs to identify the location of the Holos CLI executable (H.CLI.exe) and to add its path to the environment variables with the name PATH_HOLOS_CLI:

Fig. 1 The environment variables that should be added so the system. The variable PATH_HOLOS_CLI is mandatory while PATH_HOLOS_SERVICE_RESOURCES is optional and depends on the intended usage of PyHolos (see Soil data files below).

The PyHolos package

Go the folder where you would like to clone PyHolos. Right-click on the window and open a terminal then type:

git clone git@github.com:ProjetSOM/scenarios_virtual.git

Move inside the project folder:

cd pyholos

Now you can create a conda (or mamba) environment inside which you will install pyholos and all its dependencies. Let’s create and activate an environment called ‘MyEnv’:

conda create -n MyEnv python pip
conda activate MyEnv

Now install the dependencies using pip:

pip install -r requirements.txt

Finally, install pyholos:

pip install -e .

You’re done installing the package!

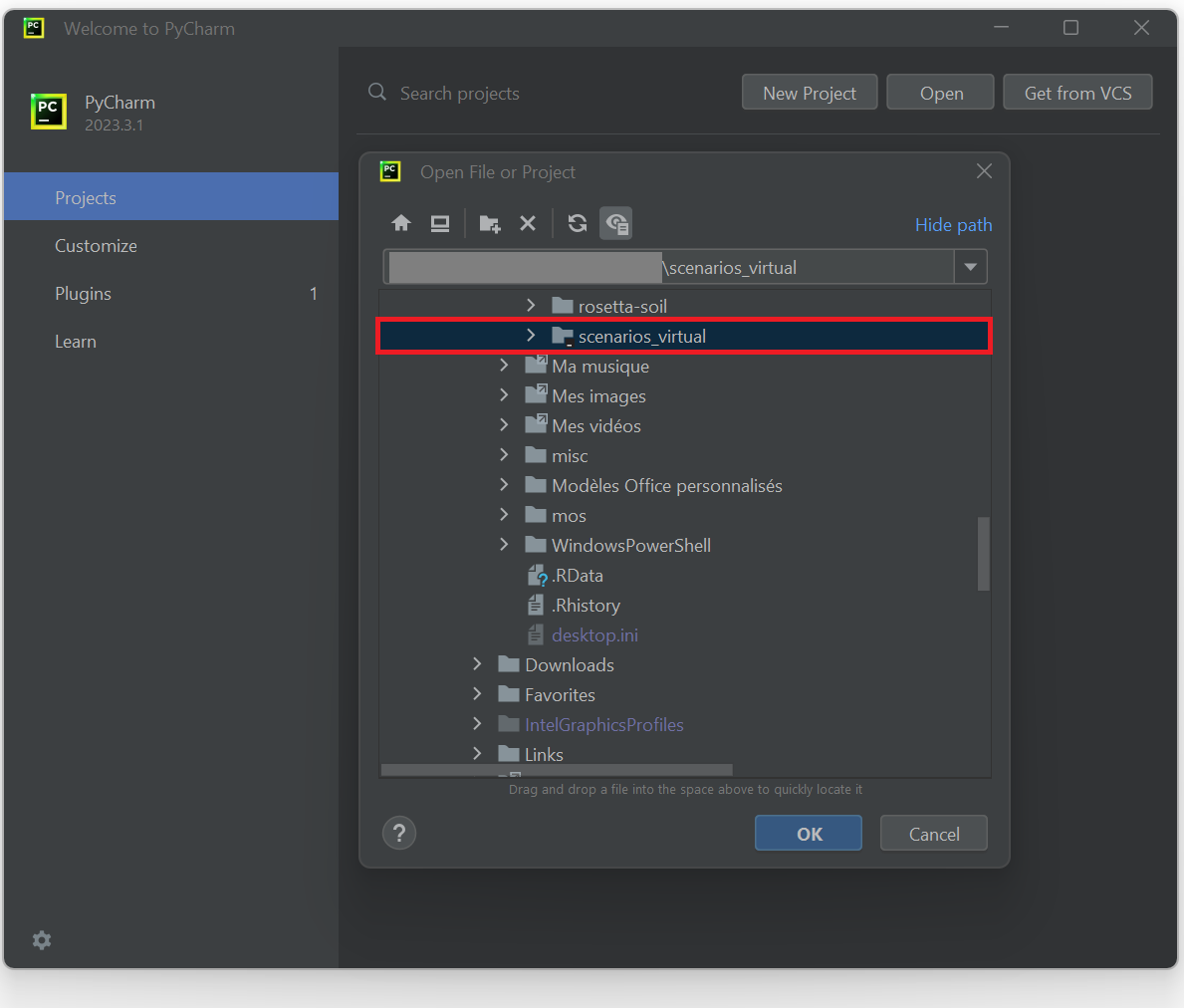

Launch now PyCharm and open the package folder as a project:

Go now to:

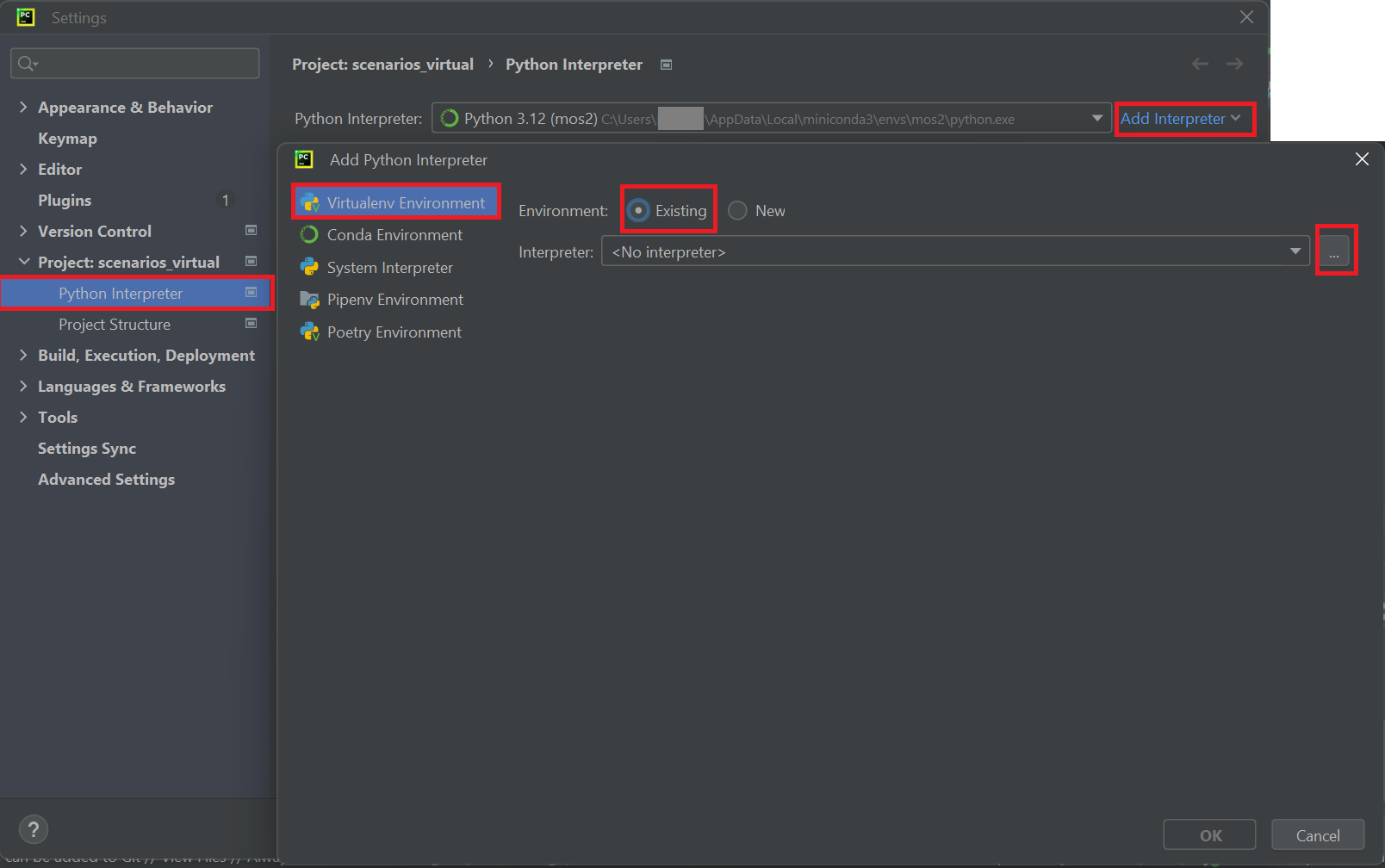

File → Settings → Project: scenario_virtual/Python → interpreter → Add Interpreter → Add local Interpreter…

then choose Virtualenv Environment and pick an Existing environment. Under , the conda environment interpreter that you need must be situated under :

C:\Users\<YourUserName>\AppData\Local\miniconda3\envs\<YourEnvironmentName>\python.exe

Note

pip is another package manager (often faster) for installing package dependencies than conda. It can be installed within a conda environment.

Note

In the future, pyholos will be deployed to third-party software repositories (e.g. PyPI). Meanwhile, the user will need to clone the source code in order to build it locally.

cd <directory_where_pyholos_will_be_cloned>
git clone git@github.com:Mon-Systeme-Fourrager/holos_service.git
cd holos_service
pip install -e .

Soil data files

Soil data is required when using PyHolos to create inputs for Holoc CLI. As in the C# source code of Holos, PyHolos uses the data provided by the Soil Landscapes of Canada (SLC). Two types of data are required, respectively CSV and GeoJSON types. The CSV files include soil information per polygon and can be downloaded by hitting “Pre-packaged CSV files” in SLC (downloads a zip file called “soil_landscapes_of_canada_v3r2_csv.zip”). The GeoJSON file includes complimentary spatially-identified soil information, downloadable by hitting “Pre-packaged GeoJSON files” in SLC (downloads a zip file called “soil_landscapes_of_canada_v3r2_geojson.zip”).

Note

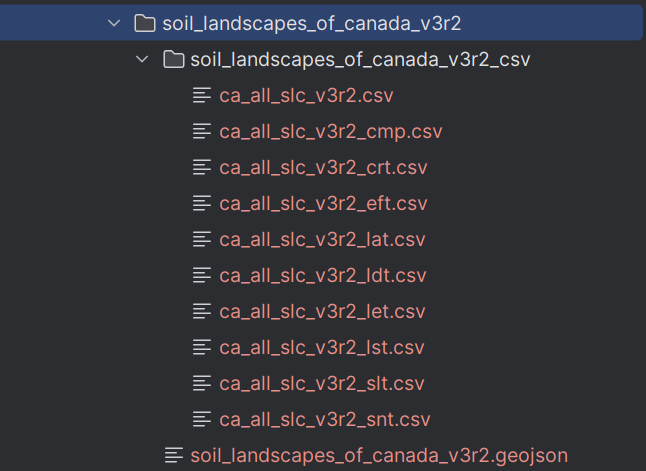

For convenience the soil data are already added to this project under src/pyholos/resources. Prior to using PyHolos, extract the zipped SLC files soil_landscapes_of_canada_v3r2_geojson.zip and remove the zip file. The soil data files are only required when PyHolos is used to create input files for Holos CLI.
